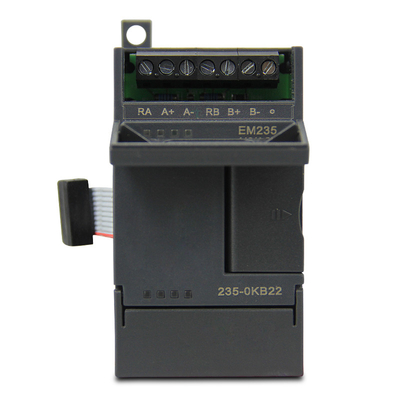

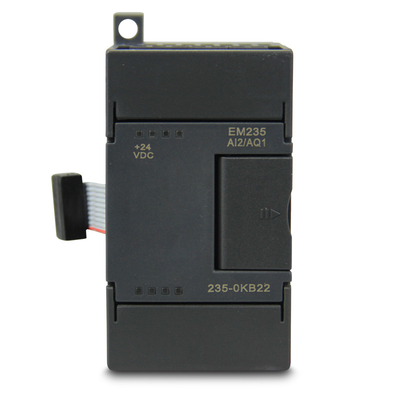

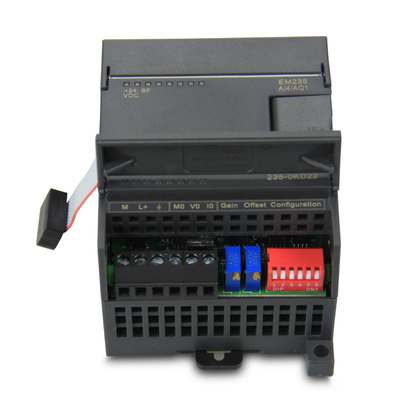

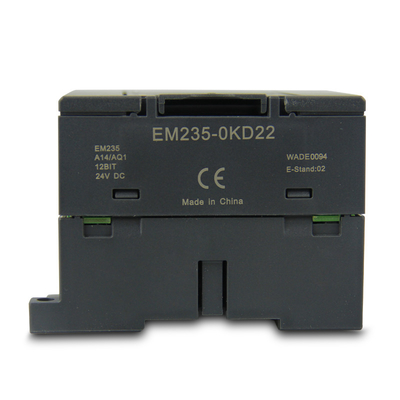

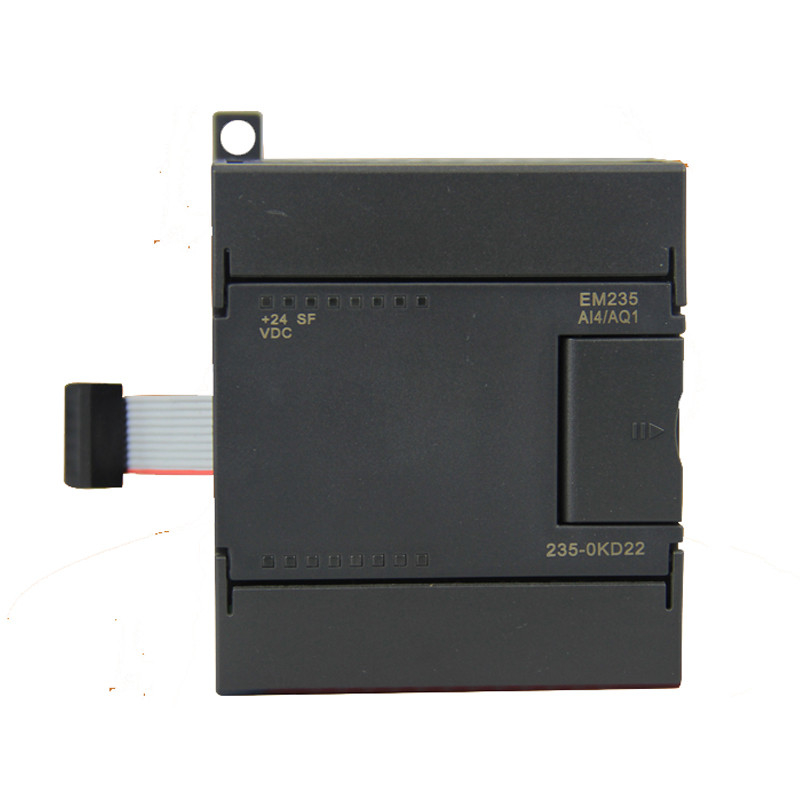

EM235 6ES7 235-0KD22-0XA0 Analog Module Compatible with PLC S7 200

EM235 6ES7 235-0KD22-0XA0 Analog Module Compatible with PLC S7 200

    • EM235 6ES7 235-0KD22-0XA0 Analog Module Compatible with PLC S7 200
    • EM235 6ES7 235-0KD22-0XA0 Analog Module Compatible with PLC S7 200
    • EM235 6ES7 235-0KD22-0XA0 Analog Module Compatible with PLC S7 200
    • EM235 6ES7 235-0KD22-0XA0 Analog Module Compatible with PLC S7 200
    • EM235 6ES7 235-0KD22-0XA0 Analog Module Compatible with PLC S7 200
  • EM235 6ES7 235-0KD22-0XA0 Analog Module Compatible with PLC S7 200

    Product Details:

    Place of Origin: Guang Dong
    Brand Name: Jetacon
    Certification: UL, CE
    Model Number: EM235 6ES7235-0KD22-0XA0

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 pieces
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 1KK poles monthly
    Contact Now
    Detailed Product Description

    Completely compatible with plc S7 200 software,CPU and Extension Module,
    It can perfectly replace each other,and siemens plc step 7-MICRO/WIN programming software supported.

    Type Number Available :
    6ES7 235-0KD22-0XA0 2AI / 1AO
    6ES7 235-0KB22-0XA0 4AI / 1AO
    EM235 6ES7 235-0KD22-0XA0 Analog Module Compatible with PLC S7 200
    EM235 6ES7 235-0KD22-0XA0 Analog Module Compatible with PLC S7 200
    EM235 6ES7 235-0KD22-0XA0 Analog Module Compatible with PLC S7 200

    --

    Model EM235 4 inputs/1 outputs ×12bits
    Product  Description 4AI,1AO; 12 bits resolution voltage output;

    11 bits resolution current output
    Input Feature
    From bus current consumption 30mA
    From L+ current consumption 60mA
    Power loss 2W
    Number of analog Input 4
    Signal input type Differential
    Maximum input voltage 30V
    Maximum input current 32mA
    Voltange input range: Unipolar 0~50mV, 0~100mV,0~500mV,0~1V,0~5V,0~10V

    current input range 0~20mA,
    Resolution 12bits

    Unipolar, full-scale range -32,000~+32,000
    Analog to digital conversion time <250µs
    Output Feature
    Number of analog Input 1
    Input voltage range -10~+10V
    Input current range 0~20mA
    ·for voltage outputs ΩMin:5KΩ
    ·for current outputs Max:0.5KΩ

    ·Displayable:voltage output -32,000~+32,000
    ·Displayable:current output 0~32,000

    Dimensions(W x H x D)(mm) 71.2×80×62
    Order Number EM235-0KD22-OXAO
    --
    EM235 6ES7 235-0KD22-0XA0 Analog Module Compatible with PLC S7 200
