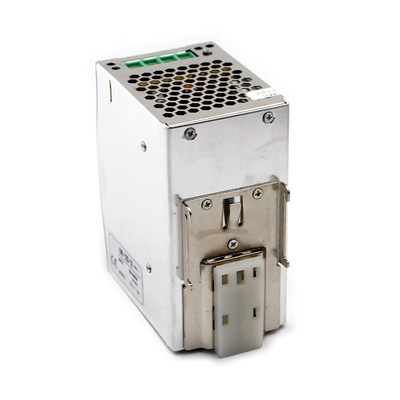

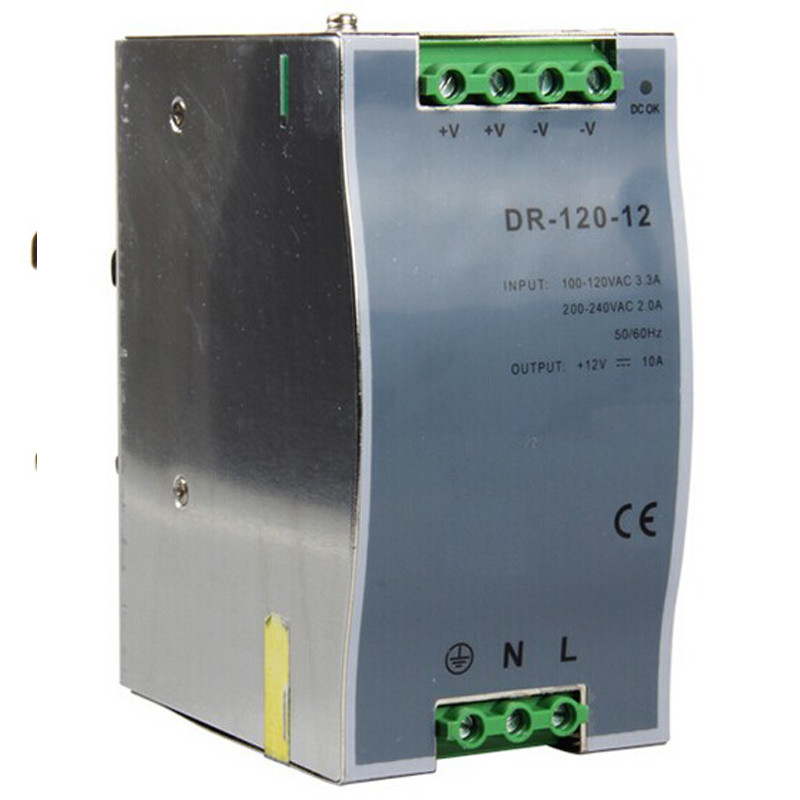

DR-120-12 120W 12V 10A DC Output Din Rail Switching Mode Power Supply

DR-120-12 120W 12V 10A DC Output Din Rail Switching Mode Power Supply

    • DR-120-12 120W 12V 10A DC Output Din Rail Switching Mode Power Supply
    • DR-120-12 120W 12V 10A DC Output Din Rail Switching Mode Power Supply
    • DR-120-12 120W 12V 10A DC Output Din Rail Switching Mode Power Supply
    • DR-120-12 120W 12V 10A DC Output Din Rail Switching Mode Power Supply
  • DR-120-12 120W 12V 10A DC Output Din Rail Switching Mode Power Supply

    Product Details:

    Place of Origin: Guang Dong
    Brand Name: Jetacon
    Certification: UL, CE
    Model Number: DR-120-12

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 Pieces
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 1KK poles monthly
    Contact Now
    Detailed Product Description
    Output Voltage: 12V Output Frequency: 50HZ
    Output Current: 10A Output Power: 101 - 200W
    Output Type: Dual Input Voltage: 220V

    Low price and high reliability

    105℃ Output capacitor
    AC input power suitable for the world
    High efficiency and low operation temperature
    Soft-start current can reduce the AC input impact effecticly
    With short-circuit and overload protection
    100% full-load burn-in test
    Installed with EMI filter, minimum wave

    Model DR-75-12 DR-75-24 DR-75-48
    DC output voltage 12V 24V 48V
    Output voltage range(Note:2) ±2% ±1% ±1%
    Rated output current 6.3A 3.2A 1.6A
    Output current range 0-6.3A 0-3.2A 0-1.6A
    Wave and noise(Note:3) 100mVp-p 150mVp-p 240mVp-p
    Inlet stability(Note:4) ±0.5% ±0.5% ±0.5%
    Load stability(Note:5) ±1% ±1% ±1%
    Efficiency 76% 80% 81%
    Adjustable range for DC voltage 10.8~13.2V 21.6~26.4V% 43.2~52.8V%
    AC input voltage range 85~264VAC 47~63Hz;120~370VDC
    Input current 1.8A/115V 0.9A/230V
    AC inrush current Cold-start current 30A/115V 60A/230V
    Leakage current <3.5mA/240VAC
    Overload protection 105%~150% Type: pulsing hiccup shutdown Reset: tuto recovery
    Over-voltage protection 13.8~16.2V 27.6~26.4V 43.2~52.8V
    Temperature coefficient ±0.03%/°c(0~50°c)
    Setup, rise , hold up time 1000ms, 60ms, 50ms/230V
    Vibration 10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
    Withstand voltage Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC
    Isolation resistance Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ
    Working temperature and humidity -10°c~+60°c(Refer to output derating curve), 20%~90%RH
    Overall dimension 55.5×125.2×100mm
    Weight 0.551Kgs 20PCS/14Kg/1.1CUFT
    Safety standards Meet UL 1012 requiement (Not apply for the mark)
    EMC standards Meet FCC PART 15 J Conduction class B
