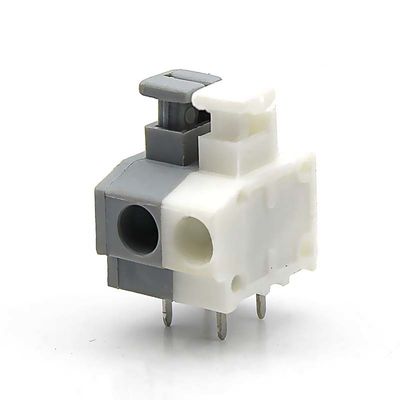

5.0mm Pitch Screwless Spring Clamp Terminal Blocks Jointable

5.0mm Pitch Screwless Spring Clamp Terminal Blocks Jointable

    • 5.0mm Pitch Screwless Spring Clamp Terminal Blocks Jointable
    • 5.0mm Pitch Screwless Spring Clamp Terminal Blocks Jointable
    • 5.0mm Pitch Screwless Spring Clamp Terminal Blocks Jointable
    • 5.0mm Pitch Screwless Spring Clamp Terminal Blocks Jointable
  • 5.0mm Pitch Screwless Spring Clamp Terminal Blocks Jointable

    Product Details:

    Place of Origin: Guang Dong
    Brand Name: Jetacon
    Certification: UL, CE
    Model Number: KF128-02-5.08

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 1KK poles monthly
    Contact Now
    Detailed Product Description
    Number Of Contacts: 1 - 10 Conductor Size: 11 - 20 AWG
    Type: Spring

    Specifications:

    Condition: Brand New
    Certification: CE, Rohs
    Pitch:5.00mm
    Poles: 4 Pins ( 4 poles joined togehter)
    Color: gray
    Torque: 0.2Nm
    Strip length: 8-9 mm
    Rated voltage: 400V
    Rated current: 5A
    Insulation resistance: 5000MΩ/1000V
    Contact resistance: 20mΩ
    Withstanding voltage: 2000V/1min
    Wire range: 16~22AWG
