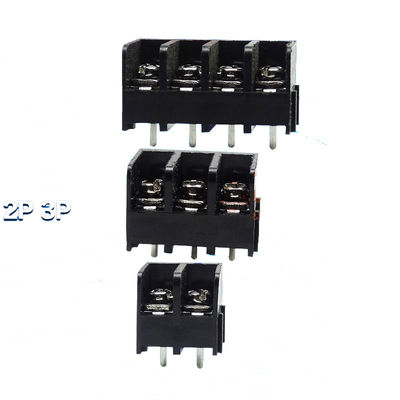

6.35mm / 0.25" Barrier Screw Terminal Blocks Jointable Straight Pin

6.35mm / 0.25" Barrier Screw Terminal Blocks Jointable Straight Pin

    • 6.35mm / 0.25" Barrier Screw Terminal Blocks Jointable Straight Pin
    • 6.35mm / 0.25" Barrier Screw Terminal Blocks Jointable Straight Pin
  • 6.35mm / 0.25" Barrier Screw Terminal Blocks Jointable Straight Pin

    Product Details:

    Place of Origin: Guang Dong
    Brand Name: Jetacon
    Certification: UL, CE
    Model Number: EC201-02-3.81

    Payment & Shipping Terms:

    Minimum Order Quantity: 500
    Price: Get latest price
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 1KK poles monthly
    Contact Now
    Detailed Product Description
    Number Of Contacts: 1 - 10 Conductor Size: 11 - 20 AWG
    Type: Screw

    Specifications:

    Condition: Brand New
    Certification: CE, Rohs
    Pitch:6.35mm
    Poles: 5 Pins ( 2 pin +3 pin, joined togehter)
    Color: black
    Torque: 0.2Nm
    Strip length: 5-6mm
    Rated voltage: 300V
    Rated current: 20A
    Insulation resistance: 5000MΩ/1000V
    Contact resistance: 20mΩ
    Withstanding voltage: 2000V/1min
    Wire range: 22~14AWG
    6.35mm / 0.25" Barrier Screw Terminal Blocks Jointable Straight Pin
    6.35mm / 0.25" Barrier Screw Terminal Blocks Jointable Straight Pin
    6.35mm / 0.25" Barrier Screw Terminal Blocks Jointable Straight Pin


    6.35mm / 0.25" Barrier Screw Terminal Blocks Jointable Straight Pin
