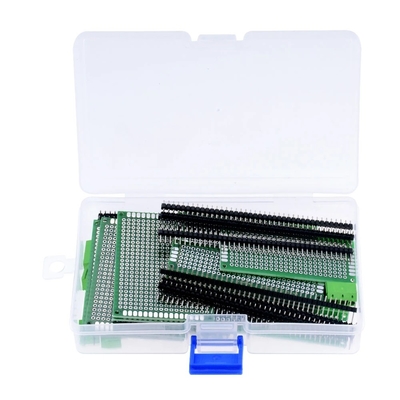

Dual Side Prototype PCB Board Kit 5.0mm Screw Terminal blocks 2.54mm Pin header Strip 40pcs
Product Details:
Place of Origin: Guang Dong
Brand Name: Jetacon
Certification: UL, CE
Model Number: KF128-02-5.0mm
Payment & Shipping Terms:
Minimum Order Quantity: 5 Sets
Price: US $10.99 / Set
Packaging Details: Standard Export Carton
Delivery Time: 7-20 working days
Payment Terms: T/T, L/C, Paypal, Payoneer
Supply Ability: 1KK poles monthly
Contact Now
Detailed Product Description
Number Of Contacts: 1 - 10 Conductor Size: 11 - 20 AWG
Type: Screw

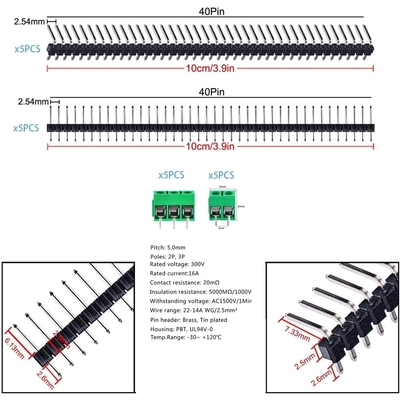

Specifications:

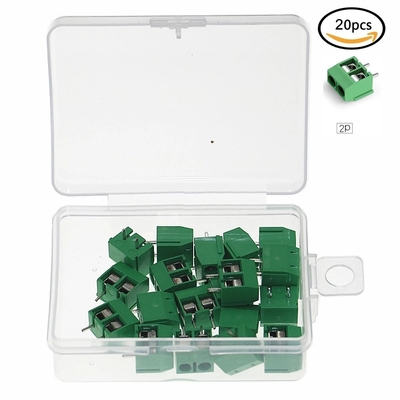

Pitch: 5.0mm

Poles: 2 Pins, 3 Pins
Color:Green
Torque: 0.2Nm
Strip length: 5-6mm
Rated voltage: 300V
Rated current:10A
Insulation resistance: 5000MΩ/1000V
Contact resistance: 20mΩ
Withstanding voltage: 2000V/1min
Wire range: 28~16AWG

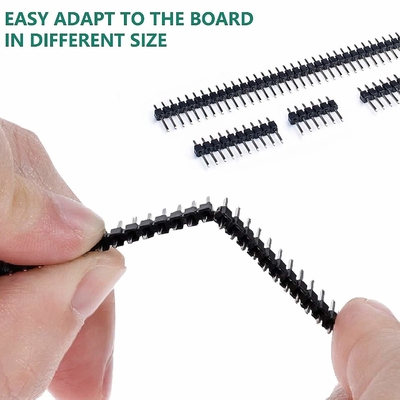

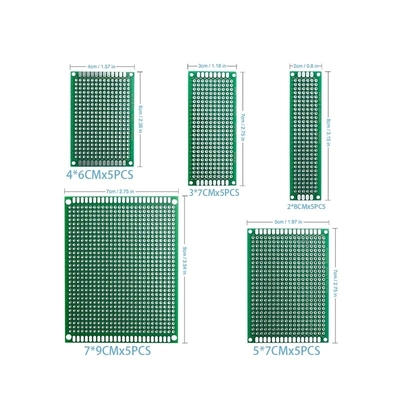

PCB board Pitch: 2.54mm
Hole diameter: 1.6mm
Material : FR-4 (glass fiber)
All holes are plated through
Dual Side Prototype PCB Board Kit 5.0mm Screw Terminal blocks 2.54mm Pin header Strip 40pcs 0
Dual Side Prototype PCB Board Kit 5.0mm Screw Terminal blocks 2.54mm Pin header Strip 40pcs 1
