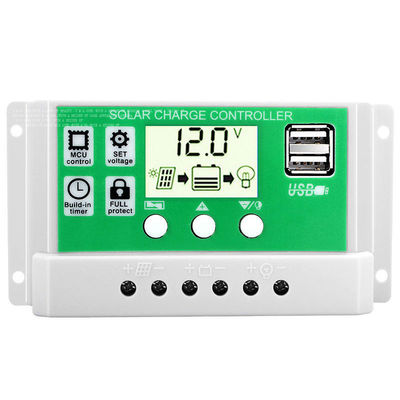

MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator

MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator

    • MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator
    • MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator
    • MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator
    • MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator
    • MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator
    • MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator
    • MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator
    • MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator
    • MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator
    • MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator
    • MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator
  • MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator

    Product Details:

    Place of Origin: China Mainland
    Brand Name: ODM
    Certification: CE
    Model Number: RBL-10A 20A 30A

    Payment & Shipping Terms:

    Minimum Order Quantity: 5 Pieces
    Price: US $6.99
    Packaging Details: Standard Export Carton
    Delivery Time: 7-15 days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 100 /Pieces per Day
    Contact Now
    Detailed Product Description
    Voltage Output: 12V 24V Current Output: 10A 20A 30A
    Weight: 160g

    NEW ARRIVAL model, can auto recongize 12V and 24V Lithium-ion battery,
    Lead-acid battery, Gel battery,Sealed battery, Flooded battery, AGM battery

    10A:
    if your battery is 12V ,the max solar panel input is 25V 120W
    if your battery is 24V ,the max solar panel input is 50V 240W
    20A:
    If your battery is 12V, the max solar panel input is 25V 240W
    if your battery is 24V, the max solar panel input is 50V 480W
    30A
    if your battery is 12V ,the max solar panel input is 25V 360W
    if your battery is 24V ,the max solar panel input is 50V 720W


    Specification:
    Name: LCD screen solar controller
    Voltage: DC 12V / 24V
    Display: LCD screen
    Self-consumption: <10MA
    Overcharge protection: 14.4V / 28.8V
    Overcharge Float charge: 13.7V / 27.4V
    Charge recovery voltage: 12.6V / 25.2V
    Over discharge protection: 10.7V / 21.4V
    Over discharge recovery: 12.6V / 25.2V
    Dual USB output: 5V / 2A (charge mobile phone, iPad, etc.)
    Working temperature: -35 ℃ -60 ℃
    12V fits 18V solar panel, 24V fits 36V solar panel

    12.0 volt lead acid battery corresponding
    The float voltage is set to: 13.6
    The recovery discharge voltage is set to: 12.6
    The discharge cut-off voltage is set to: 10.7

    12.8 volt lithium iron phosphate battery corresponding
    The float voltage is set to: 14.6
    The recovery discharge voltage is set to: 13.6
    The discharge cut-off voltage is set to: 11.0

    11.1 volt lithium battery corresponding
    The float voltage is set to: 12.6
    The recovery discharge voltage is set to: 11.6
    The discharge cut-off voltage is set to: 9.6
    Function:
    1. Always keep the battery on fill voltage condition.
    2. Prevent the battery from over-charging.
    3. Prevent the battery from over-discharging.
    4. Prevent the battery from reverse charging to solar panels during nights.
    5. Reverse Polarity Protection for Battery
    6. Reverse Polarity Protection for Solar Panels
    7. When the battery voltage is low, the controller will automatically cut off the load from the system. If the voltage of battery is back to normal and the load will restart working.
    8. According to the battery voltage grade, the controller can automatically set charge-off voltage, the load-off voltage, the load- restore voltage. (The parameter is default under 25℃
    condition, locked by the CPU procedure, cannot adjust.)
    9. The controller will automatically compensate the temperature of the charging voltage according to the changes of ambient temperature.
    10. Thunder protection
    Packing List:
    1 x Solar Panels Battery Charge Controller
    1 x User Manual

    MPPT Solar Charge Controller Battery Charging Panel Dual USB Controlador De Carga 12V 24V Auto Regulator
