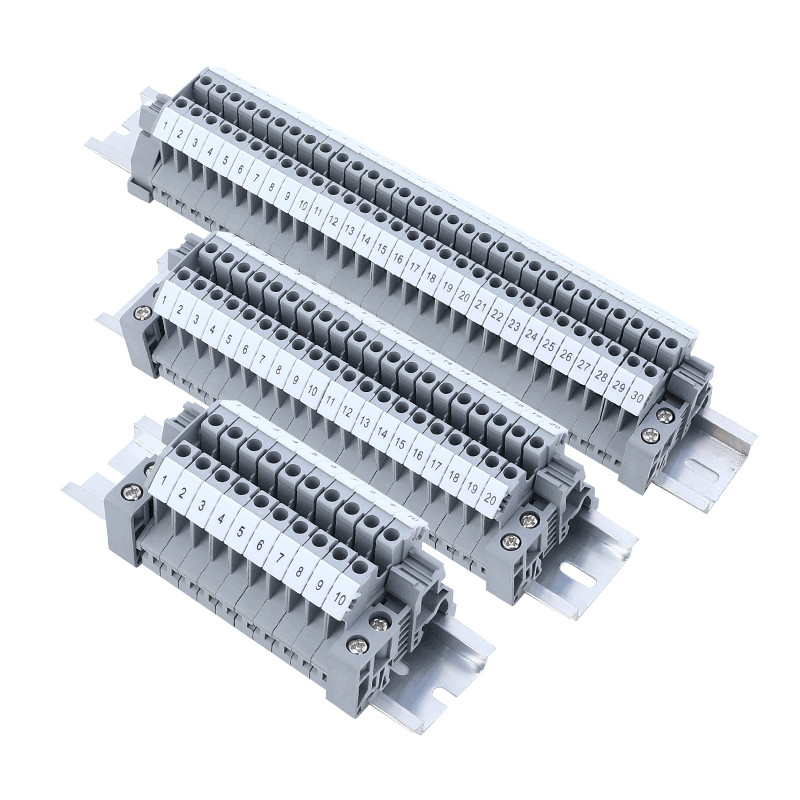

UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V

UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V

    • UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V
    • UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V
    • UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V
    • UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V
    • UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V
    • UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V
    • UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V
    • UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V
    • UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V
  • UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V

    Product Details:

    Place of Origin: Guang Dong
    Brand Name: Jetacon
    Certification: UL, CE
    Model Number: UK2.5B Modular

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pieces
    Price: US $2.99
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 1KK poles monthly
    Contact Now
    Detailed Product Description
    Number: 5 - 30 Pieces Conductor Size: 11 - 20 AWG
    Type: Screw


    -
    Model Number UK 2.5B
    Color Grey, Blue, other color can be customized
    Length / Height / Wide (mm) 42.5mm / 41mm /6.2mm
    Connection method Screw connection
    Material Nylon PA66
    Rated Voltage/Current 690V/32A
    Cross section, solid/soft Cable 0.2-4 mm² / 0.2-2.5 mm²
    Conductor Size 24-12 AWG
    Mounting Type NS 35/7.5
    Standard IEC 60947-7-1
    LOGO Customized logo are supported
    Packing Detail 6.9g/pc, 50pcs/BOX, 3000pcs/ carton
    Certification CE/RoHS/CQC/ISO 9001

    -
    UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V
    UK2.5B Screw Terminal Blocks Kit UK2.5N Modular DIN Rail Mounted Strips 32A 690V

    -
    Model Hard Wire
    (mm2)
    Soft Wire
    (mm2)
    Rated
    Current
    (A)
    Rated
    Voltage
    (V)
    Dimension
    (mm)
    UK2.5B 0.2-4 0.2-2.5 32 690 6.2 x 42.5 x 42
    UK3N 0.2-4 0.2-2.5 32 800 6.2 x 42.5 x 42
    UK5N 0.2-6 0.2-4 41 800 6.2 x 42.5 x 47
    UK6N 0.2-10 0.2-2.5 57 800 6.2 x 42.5 x 47
    UK10N 0.5-16 0.5-10 76 800 10.2 x 42.5 x 47
    UK16N 2.5-25 4-16 101 800 12.2 x 42.5 x 54
    UK35N 0.75-50 0.75-35 150 1000 15.2 x 50.0 x 62
    UKH50 16-50 25-50 150 1000 20 x 70.5 x 83.5
    UKH95 25-95 35-95 232 1000 25 x 83 x 97.5
    UKH150 35-150 50-150 309 1000 31 x 100 x 118.5
    USLKG2.5 0.2-4 0.2-2.5 32 / 6.2 x 42.5 x 42
    USLKG3 0.2-4 0.2-2.5 32 / 6.2 x 42.5 x 47
    USLKG5 0.2-6 0.2-4 41 / 6.2 x 42.5 x 47
    USLKG6N 0.2-10 0.2-6 57 / 8.2 x 42.5 x 47
    USLKG10N 0.5-16 0.5-10 76 / 10.2 x 42.5 x 47
    USLKG16N 2.525 4-16 101 / 12.2 x 42.5 x 54
    USLKG35N 0.75-50 0.75-35 150 / 15.2 x 50.0 x 62
    USLKG50 16-50 25-50 150 / 20 x 70.5 x 81.5
