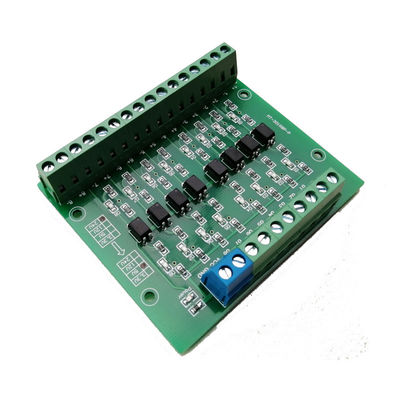

TTL HTL Signals Converter Terminal Blocks Board 8 Ways For PLC NPN or PNP 1.8V 3.3V 5V 12V 24V Input

TTL HTL Signals Converter Terminal Blocks Board 8 Ways For PLC NPN or PNP 1.8V 3.3V 5V 12V 24V Input

    • TTL  HTL Signals Converter Terminal Blocks Board 8 Ways For PLC NPN or PNP 1.8V 3.3V 5V 12V 24V Input
    • TTL  HTL Signals Converter Terminal Blocks Board 8 Ways For PLC NPN or PNP 1.8V 3.3V 5V 12V 24V Input
    • TTL  HTL Signals Converter Terminal Blocks Board 8 Ways For PLC NPN or PNP 1.8V 3.3V 5V 12V 24V Input
    • TTL  HTL Signals Converter Terminal Blocks Board 8 Ways For PLC NPN or PNP 1.8V 3.3V 5V 12V 24V Input
    • TTL  HTL Signals Converter Terminal Blocks Board 8 Ways For PLC NPN or PNP 1.8V 3.3V 5V 12V 24V Input
    • TTL  HTL Signals Converter Terminal Blocks Board 8 Ways For PLC NPN or PNP 1.8V 3.3V 5V 12V 24V Input
    • TTL  HTL Signals Converter Terminal Blocks Board 8 Ways For PLC NPN or PNP 1.8V 3.3V 5V 12V 24V Input
    • TTL  HTL Signals Converter Terminal Blocks Board 8 Ways For PLC NPN or PNP 1.8V 3.3V 5V 12V 24V Input
  • TTL  HTL Signals Converter Terminal Blocks Board 8 Ways For PLC NPN or PNP 1.8V 3.3V 5V 12V 24V Input

    Product Details:

    Place of Origin: Guang Dong
    Brand Name: Jetacon
    Certification: UL, CE
    Model Number: DST-1R8P-N / P

    Payment & Shipping Terms:

    Minimum Order Quantity: 2 Pieces
    Price: US $64.99
    Packaging Details: Standard Export Carton
    Delivery Time: 7-20 working days
    Payment Terms: T/T, L/C, Paypal, Payoneer
    Supply Ability: 1KK poles monthly
    Contact Now
    Detailed Product Description
    Power Supply: DC24V Singal Input: 5V TTL A+ A- B+ B-
    Singal Output: 24V HTL

    LED indicator for output ON
    The converters can be used with all kinds of low voltage sensors
    Power Supply Voltage : 5.0V to 24V VDC
    Output Voltage : NPN or PNP output
    Standard DIN rail mounting ( 35 mm)
    Temperature range 10 to 55 C
    high speed counting up to 20Khz
    Product size : 80mm L x 51mm W x 40mm H

    Net Weight: 80g

    --

    Product Type A: NPN Output 1.8V Voltage input
    Product Type B: NPN Output 3.3V Voltage input
    Product Type C: NPN Output 5.0V Voltage input
    Product Type D: NPN Output 12V Voltage input
    Product Type E: NPN Output 24v Voltage input
    -----
    Product Type F: PNP Output 1.8V Voltage input
    Product Type G: PNP Output 3.3V Voltage input
    Product Type H: PNP Output 5.0V Voltage input
    Product Type I: PNP Output 12V Voltage input
    Product Type J: PNP Output 24v Voltage input

    TTL  HTL Signals Converter Terminal Blocks Board 8 Ways For PLC NPN or PNP 1.8V 3.3V 5V 12V 24V Input



    TTL  HTL Signals Converter Terminal Blocks Board 8 Ways For PLC NPN or PNP 1.8V 3.3V 5V 12V 24V Input
